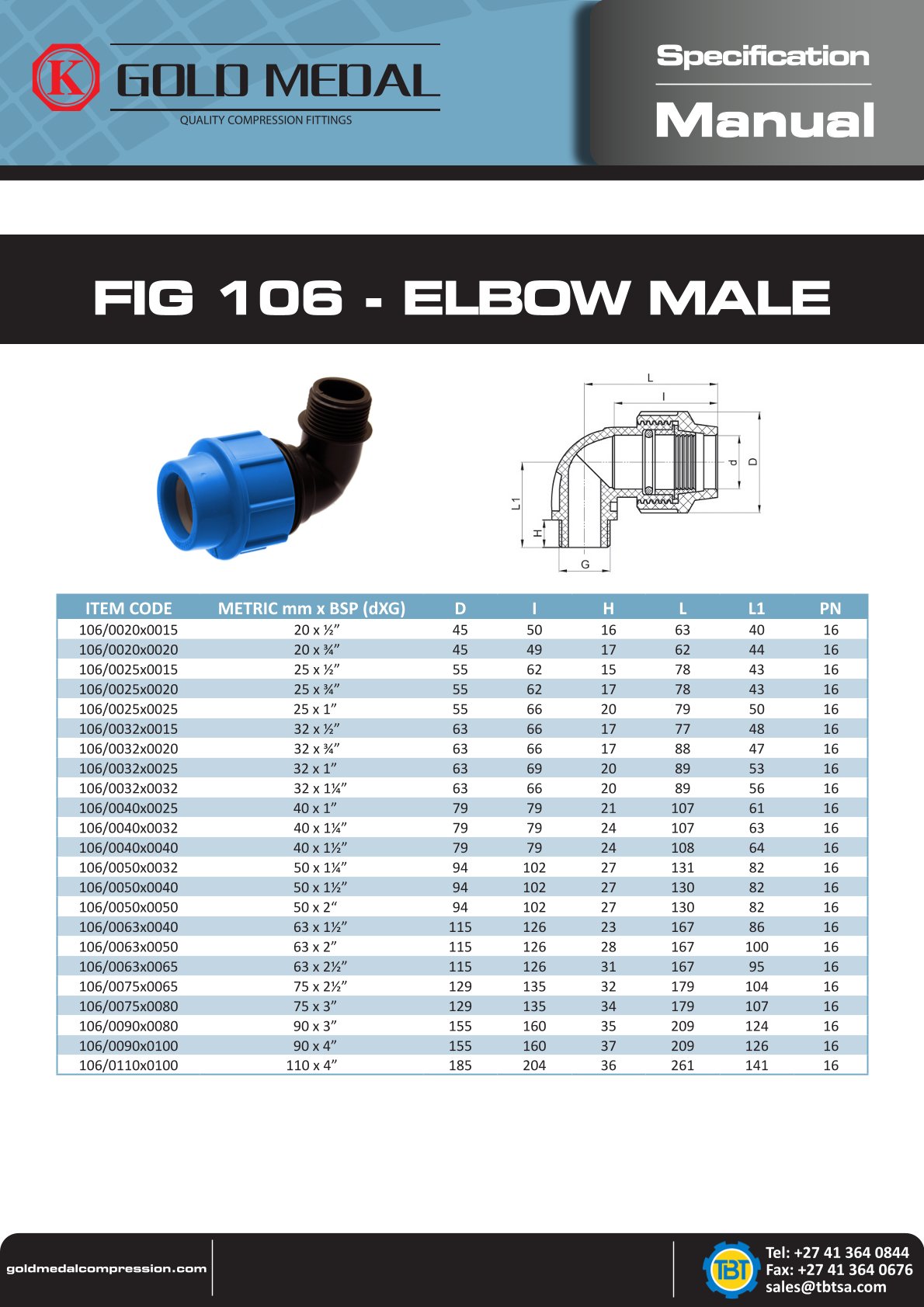

FIG 106 – Male Elbow

Features:
The range of Gold Medal compression fittings & valves are for use with high-density polyethylene pipes dedicated to fluid reticulation. They can be used in irrigation, drinking water systems and include many items suitable for a very wide range of plant engineering installation requirements. The sizes range from 20mm to 110mm. All fittings with a female threaded portion of 32mm or greater are reinforced externally with a stainless-steel ring.

ADD TO QUOTE
[cs_pressure_conversion_calc title='My Pressure Conversion' text_color='#000000' background_color='#FFFFFF' header_color='#72a8c4' header_text_color='#FFFFFF' border_color='#e1e0e0']

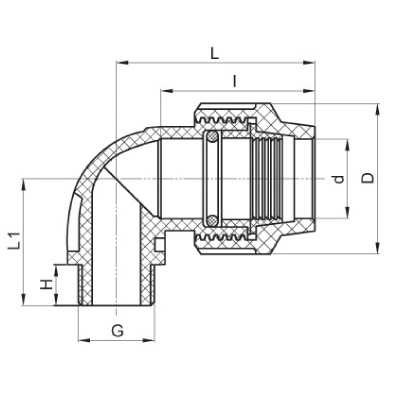

Product Dimensions

Dimensions Table

ITEM CODEMETRIC mm x BSP
106/0020x0015 20 × ½”
106/0020x0020 20 × ¾”
106/0025x0015 25 × ½”
106/0025x0020 25 × ¾”
106/0025x0025 25 × 1”
106/0032x0015 32 × ½”
106/0032x0020 32 × ¾”
106/0032x0025 32 × 1”
106/0032x0032 32 × 1¼”
106/0040x0025 40 × 1”
106/0040x0032 40 × 1¼”
106/0040x0040 40 × 1½”
106/0050x0032 50 × 1¼”
106/0050x0040 50 × 1½”
106/0050x0050 50 × 2”
106/0063x0040 63 × 1½”
106/0063x0050 63 × 2”
106/0063x0065 63 × 2½”
106/0075x0065 75 × 2½”
106/0075x0080 75 × 3”
106/0090x0080 90 × 3”
106/0090x0100 90 × 4”
106/0110x0100 110 × 4”

Technical Data

Maximum Working Pressure:
16 BAR while operating at a maximum temperature of 20°C

Temperature Rating:
0°C – 45°C
