Features:
The range of Gold Medal compression fittings & valves are for use with high-density polyethylene pipes dedicated to fluid reticulation. They can be used in irrigation, drinking water systems and include many items suitable for a very wide range of plant engineering installation requirements. The sizes range from 20mm to 110mm. All fittings with a female threaded portion of 32mm or greater are reinforced externally with a stainless-steel ring.

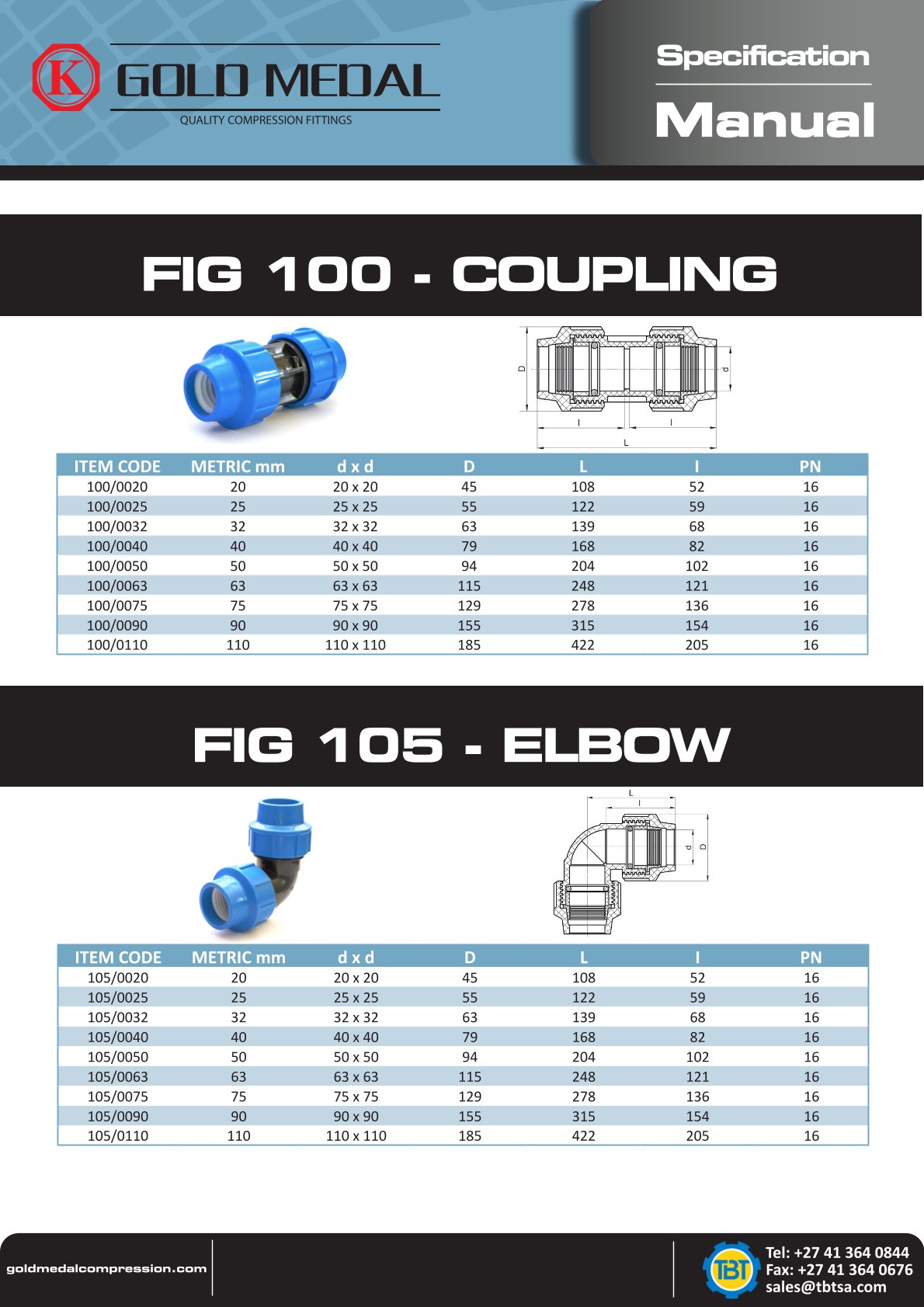

| ITEM CODE | METRIC mm | dxd | D | L | I | PN |
|---|---|---|---|---|---|---|
| 105/0020 | 20 | 20x20 | 45 | 108 | 52 | 16 |
| 105/0025 | 25 | 25x25 | 55 | 122 | 59 | 16 |
| 105/0032 | 32 | 32x32 | 63 | 139 | 68 | 16 |
| 105/0040 | 40 | 40x40 | 79 | 168 | 82 | 16 |
| 105/0050 | 50 | 50x50 | 94 | 204 | 102 | 16 |
| 105/0063 | 63 | 63x63 | 115 | 248 | 121 | 16 |
| 105/0075 | 75 | 75x75 | 129 | 278 | 136 | 16 |
| 105/0090 | 90 | 90x90 | 155 | 315 | 154 | 16 |
| 105/0110 | 110 | 110x110 | 185 | 422 | 205 | 16 |
Maximum Working Pressure:
16 BAR while operating at a maximum temperature of 20°C
Temperature Rating:
0°C – 45°C
