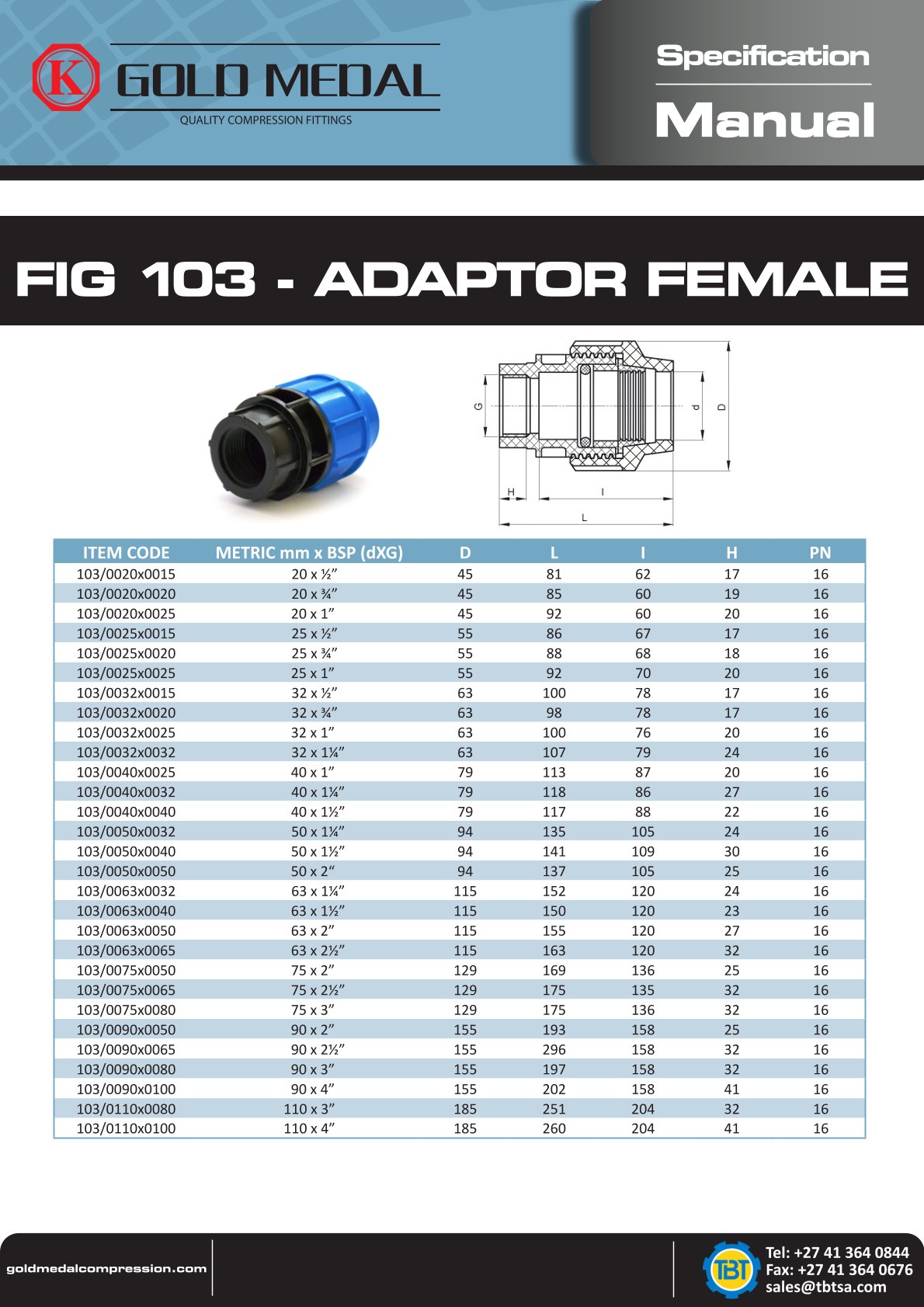

FIG 103 – Female Adaptor

FIG 103 - Female Adaptor

Features:
The range of Gold Medal compression fittings & valves are for use with high-density polyethylene pipes dedicated to fluid reticulation. They can be used in irrigation, drinking water systems and include many items suitable for a very wide range of plant engineering installation requirements. The sizes range from 20mm to 110mm. All fittings with a female threaded portion of 32mm or greater are reinforced externally with a stainless-steel ring.

ADD TO QUOTE

Product Dimensions

Dimensions Table

ITEM CODEMETRIC mm x BSP (dXG)DLIPN
103/0020x0015 20 x 1⁄2” 45 8162 16
103/0020x0020 20 x 3⁄4”45 85 60 16
103/0020x0025 20 x 1” 45 92 60 16
103/0025x0015 25 x 1⁄2” 55 86 67 16
103/0025x0020 25 x 3⁄4” 55 88 68 16
103/0025x0025 25 x 1” 55 92 70 16
103/0032x0015 32 x 1⁄2” 63 100 78 16
103/0032x0020 32 x 3⁄4” 63 98 78 16
103/0032x0025 32 x 1” 63 10076 16
103/0032x0032 32 x 11⁄4” 63 10779 16
103/0040x0025 40 x 1” 79 113 87 16
103/0040x0032 40 x 11⁄4” 79 1188616
103/0040x0040 40 x 11⁄2” 79117 8816
103/0050x0032 50 x 11⁄4” 94135105 16
103/0050x0040 50 x 11⁄2” 94141 109 16
103/0050x0050 50 x 2“ 94 137 10516
103/0063x0032 63 x 11⁄4” 115 152 120 16
103/0063x0040 63 x 11⁄2” 115 150 120 16
103/0063x0050 63 x 2” 115 155 12016
103/0063x0065 63 x 21⁄2” 115 163120 16
103/0075x0050 75 x 2” 129 169 136 16
103/0075x0065 75 x 21⁄2” 129 175 13516
103/0075x0080 75 x 3” 129 175 136 16
103/0090x0050 90 x 2” 155 193 158 16
103/0090x0065 90 x 21⁄2” 155 296 158 16
103/0090x0080 90 x 3” 155 197 158 16
103/0090x0100 90 x 4” 155 202 158 16
103/0110x0080 110 x 3” 185 251 204 6
103/0110x0100110 x 4”185 260 204 16

Technical Data

Maximum Working Pressure:
16 BAR while operating at a maximum temperature of 20°C

Temperature Rating:
0°C – 45°C
